Product Description:
In general, the advantages of steel structures are as follows:
- Steel has a high strength-to-weight ratio. Therefore the dead
weight of steel structures is relatively small. This property makes
steel a very attractive structural material for some multi-story
buildings, long-span bridges, etc.
- It can undergo plastic deformation before failure; this provides
greater reserve strength. This property is called ductility.
- Properties of steel can be predicted with a very high degree of
certainty. Steel shows elastic behavior up to a relatively high and
usually well-defined stress level.
- Structural steel can be built with a high-quality relationship and
narrow tolerances.
- Prefabrication and mass production is usually possible in steel
structures.
- The rapid construction is possible in the steel structures. This
results in the economic construction of steel structures.
- Good fatigue strength is also the advantage of the steel structure.
- If necessary, the steel structures can be strengthened at any time
in the future.
- The reused capability of steel construction is also an advantage.
The roof and wall cladding of the Steel Structure Warehouse is made
of EPS, Glass Wool, Rock Wool, PU, which provides excellent
insulation and protection against heat, cold, and moisture. This
makes it ideal for use as a cold room warehouse. It is also
suitable for use as an industrial warehouse shelving, as it can
accommodate heavy loads and withstand harsh working conditions.
The Steel Structure Warehouse is designed with H beams, which
provide excellent structural integrity and stability. The beams are
made of high-quality steel, which is resistant to corrosion, rust,
and other environmental factors. This ensures that the warehouse is
safe and secure, and it can withstand natural disasters like
earthquakes, hurricanes, and floods.
Technical Parameters:
| The main options of the components are as follows: |
| Main Structure | Column | Q355B Welded H column |
| Rafter, Beam | Q355B Welded H column |
| Surface processing options | 1. Epoxy zinc-rich primer + epoxy mica termediate paint |
| 2. Hot dip galvanization |
| Sub Structure | Purlin | Q235B, C section steel, galvanization 80-275g/m2 |
| Angle brace | Q235B, L- steel |
| Cross bracing | Q235B round bar, L-steel |
| Tie bar | Q235B, round pipe |
| Batter brace | Q235B, round bar |
| Roof System | Roof panel options | 1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Both
sides are steel sheet. Thickness of roof panel 50mm/75mm/100mm,
thickness of steel sheet 0.4mm/0.5mm/0.6mm |
| 2. Steel plate, thickness 0.4mm-0.6mm |
| Gutter options | 1. Galvanized steel gutter, thickness 2.0mm/2.5mm, 3.0mm |
| 2. Painted, Pre-finished steel gutter, thickness 0.4mm/0.5mm/0.6mm |
| Down spout | PVC pipe |
| Steel flashing and cover | Steel sheet for roof ridge cap, gable wall end cover and corner
cover |
| Options | Roof skylight 1.8mm PVC sheet and stainless steel ventilator |
| Wall System | Wall panel options | 1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two
sides is steel sheet. The thickness of wall panel 50mm/75mm/100mm,
the thickness of steel sheet is 0.4mm/0.5mm/0.6mm |
| 2. Steel plate, thickness 0.4mm/0.5mm |
| 3. Brick wall (provided by client) |
| Door | 1. Roller door for truck, size customized |
| 2. Sliding door for truck, size customized |
| 3. Access door, steel door, glass door etc. |
| Window | PVC or Aluminum frame, Fixed, swing, sliding, louver etc, size
customized |
| Steel flashing and cover | Steel sheet end cover and corner cover |
| Accessories and fasteners | | Anchor bolts, chemical bolts, high-strength bolts, ordinary bolts,
self-tapping screws, rivets etc. |
Applications:
The WH2766 model is also suitable for cold room warehouse
applications. The roof and wall thickness of the warehouse can be
customized according to the requirements of the buyer. The
thickness options available are 50mm, 75mm, 100mm, 120mm, 150mm,
and 200mm. This makes it perfect for storing temperature-sensitive
products, such as food and pharmaceuticals.
The steel structure of this warehouse also comes with different
bracing options, including X-type, V-type, or other types of
bracing made from angle, round bar, etc. Additionally, the purlin
used in the warehouse is galvanized C or Z-type steel.
Buyers can customize the drawing plan as per their requirements,
making it a versatile product that can cater to different
industrial applications. Choose KXD Steel Structure WH2766 for a
durable and reliable steel frame warehouse solution.
Support and Services:
The Steel Structure Warehouse product comes with comprehensive
technical support and services to ensure the best possible
experience for our customers. Our team of experts is available to
assist with any technical questions or issues that may arise during
the installation or use of the product. Our services include:
- On-site installation guidance and supervision
- Technical consultation and support
- Repair and maintenance services
- Customized design solutions
With our commitment to customer satisfaction, we strive to provide
prompt and efficient technical support and services to ensure the
successful completion of every project. Contact us for more
information or to request technical assistance.

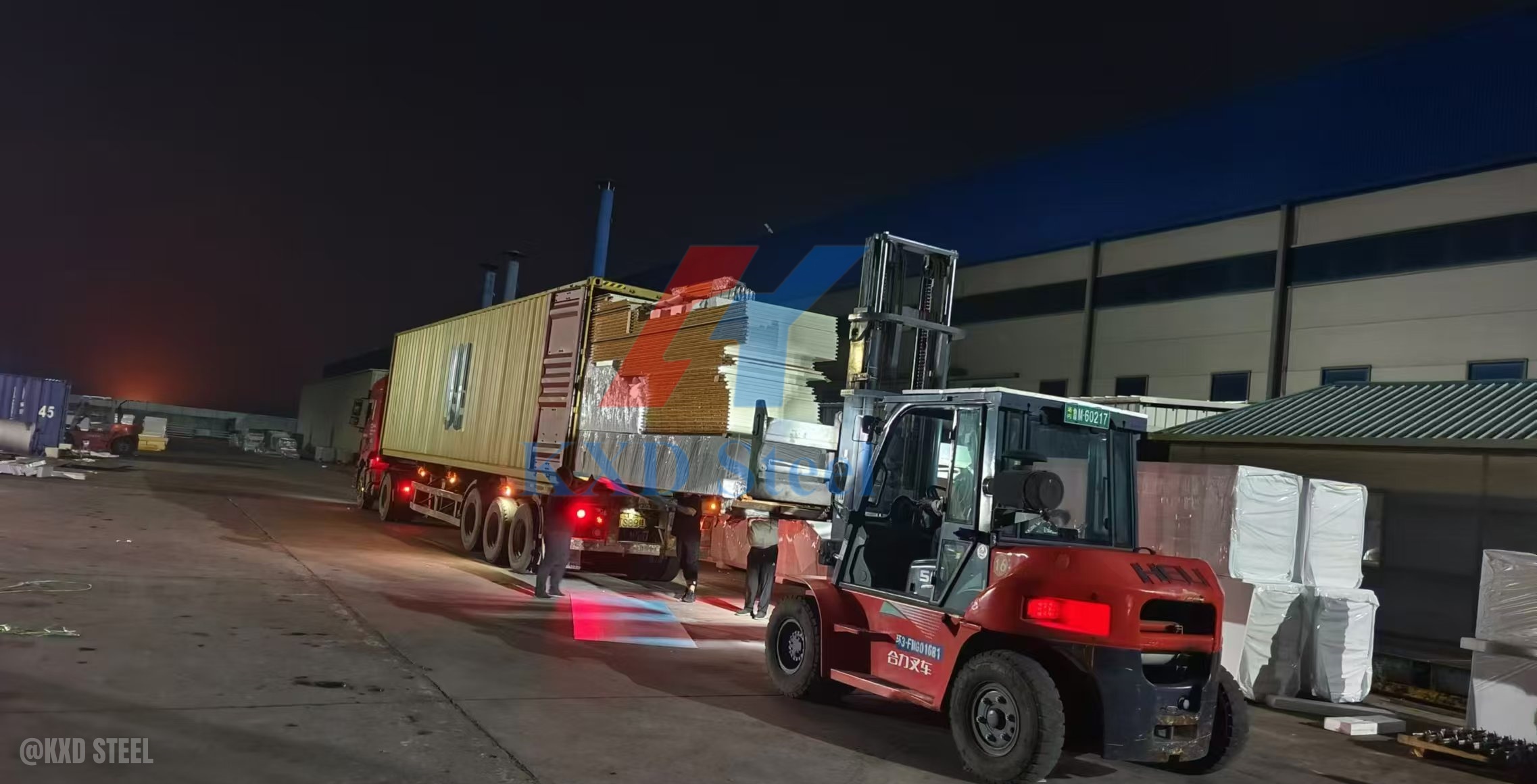

Packing and shipping :
Product Packaging:
The Steel Structure Warehouse will be securely packaged in wooden
crates or pallets to ensure safe transportation and delivery.
Shipping:
We offer worldwide shipping for our Steel Structure Warehouse
product. The shipping cost will be calculated based on the
destination and weight of the product. Please contact us for a
shipping quote and estimated delivery time.
FAQ:
Q: Are you a manufacturer or trading company?
A:We are a manufacturing factory, located in Qingdao city, near
Qingdao port. We have a total 3 workshops from steel structure to
wall and roof sheet.
Q: How about your quality control?
A: We have got certificates ISO & CE. Products processing through
cutting, bending, welding, shot blasting, ultrasonic testing,
packing, storing, and loading to ensure no quality defects.
Q: Is third-party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client
requirements.
Q: How about your delivery time?
A: Generally within 30-45 days, it is according to order quantity,
partial shipment is allowed for big orders.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors
guiding installation is available. We can do turnkey jobs for some
kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: The sales and engineer team will provide you with a suitable
solution according to your requirements before placing an order.
Proposal drawings, Shop drawings, 3D drawings, Materials photos,
and Finished projects photos are available, which will help you
understand the solution we provided deeply.
