Product Description:

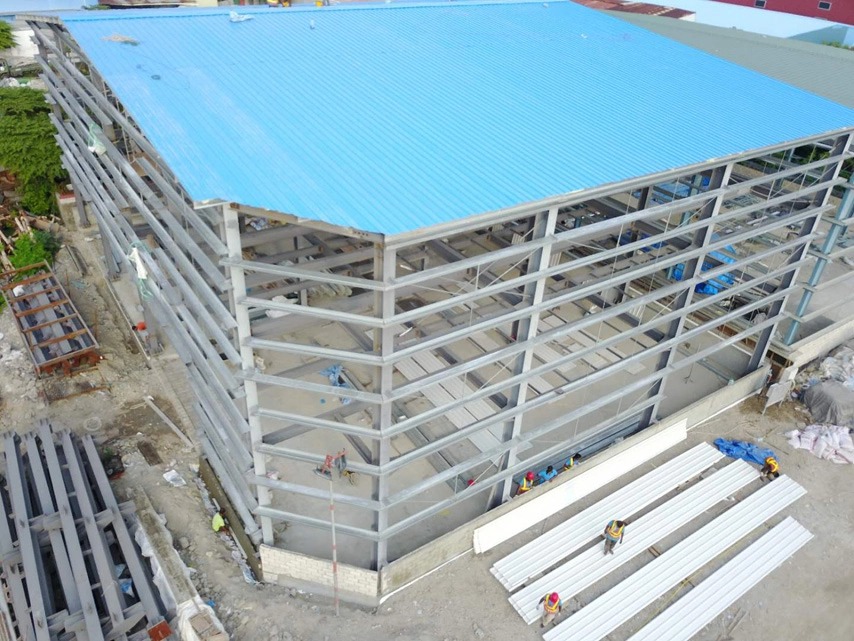

Steel warehouse is a durable and reliable solution for your storage
needs. Constructed using high-quality steel materials, these
warehouses provide exceptional strength and sturdiness, ensuring
that your precious items and equipment are well-protected and
secured. These steel warehouses come in a variety of sizes and
designs to meet your specific requirements and can be easily
customized according to your preferences. Our Steel Structure Warehouse can serve a variety of functions,
from storing goods to providing workshop space,such as storing crop supplies or protecting machinery from the
elements.
Technical Parameters:
| Item | Material | Description and surface process |
| Main steel frame | Column and Beam | Q235 or Q355 | H section steel with two coats of mid-gray paint |
| Purlin | Q235 or Q355 | Galvanized C or Z type steel |
| Connecting Pieces | Tie tube | Q235 | Circular Tube with two coats of mid-gray paint |
| Knee-Bracing | Q235 | L50*4 Galvanized angle steel |
| Strutting piece | Q235 | φ12*2.5 Galvanized Circular Tube |
| Column Bracing | Q235 | Circular Tube with two coats of mid-gray paint |
| Horizontal Bracing | Q235 | Circular Tube with two coats of mid-gray paint |
| Casing | Q235 | φ30*2.5 Galvanized Circular Tube |
| Door and Window | Item | Description |
| Door | Roller shutter door or Sliding door |
| Window | PVC Window or aluminum alloy window |
| Other parts | Ventilating device | Fan,Ventilation window |
| Bolt | Foundation bolt,High strengthen bolt, Normal bolts |
| Skylight | Yx-840 Glass Fiber Reinforced Plastics |
| Out/Inner ridge tile | 0.50mm Color sheet |
| Crane beam | Q235 or Q345 H section steel with two coats of mid-gray paint |
| Panel Material parts | (1). External Wall panel: (below is selectable) |
| 1) 50mm, 75mm or 100mm thickness EPS sandwich panel |
| 2) 50mm, 75mm or 100mm thickness glass wool sandwich panel |
| 3) 50mm, 75mm or 100mm thickness Rockwool sandwich panel |
| 4) 50- 250mm thickness PU sandwich panel |
| 3) 900# Corrugated Galvanized Steel sheet with different Color |
| 4) Kinds of PVC wall panel. |
| (2). Internal Wall panel: (below is selectable) |
| 1)50mm, 75mm or 100mm thickness EPS sandwich panel |
| 2) 50mm, 75mm or 100mm thickness glass wool sandwich panel |
| 3) 50mm, 75mm or 100mm thickness Rockwool sandwich panel |
| (3). Roofing panel: (below is selectable) |
| 1)50mm, 75mm or 100mm thickness EPS sandwich panel |
| 2) 50mm, 75mm or 100mm thickness glass wool sandwich panel |
| 3) 50mm, 75mm or 100mm thickness Rockwool sandwich panel |
| 3)Corrugated Steel Sheet, an insulating layer if need. |
| 4)Corrugated PVC roof panel. |
| (4). Skylight: 820# Glass Fiber Reinforced Plastics (FRP) |
Applications:
Moreover, steel warehouses are a cost-effective option compared to
other building materials. The maintenance costs for a steel
building are significantly lower than those associated with
traditional buildings, resulting in cost savings over the long
term. Additionally, steel is a sustainable and eco-friendly
material, making it an ideal choice for environmentally conscious
businesses.
The KXD Steel Structure WH2766 is perfect for those who need a
warehouse that is cost-effective. The product is designed to be
cost-effective, which makes it perfect for those who need a
warehouse that is affordable and can be customized to meet their
specific needs.
The KXD Steel Structure WH2766 comes with galvanized C or Z type
steel purlin, H beam beam, and door type of Roller Shutter Door Or
Sliding Door.
Customization:
We offer two options for surface treatment: spray painting and
galvanizing. Both options provide excellent corrosion resistance,
ensuring that your warehouse will stand the test of time.
Our steel structure warehouse is versatile and can be used for a
variety of storage needs. It is perfect for storing large
equipment, raw materials, finished products, and even vehicles. The
warehouse is easy to assemble, making it an ideal option for those
in need of a quick and efficient storage solution.
Support and Services:
Our Steel Structure Warehouse product comes with comprehensive
technical support and services. Our team of experts are available
to assist with any questions or concerns regarding the
installation, maintenance, or repair of the warehouse structure. We
offer on-site consultations and assessments to ensure that the
structure is built to the highest standards and meets all necessary
regulations. In addition, we provide access to a range of
value-added services such as design customization and project
management to ensure that the Steel Structure Warehouse meets the
unique needs of our customers. Contact us today to learn more about
how we can support your warehouse project.
| Size | As customer's requirements/Customized |
| Material | Steel Q355&Q235 |
| Surface | Painted or galvanized |
| Connection | Bolt Connection or welded connection |
| Roof&Wall | 1.No insulation:Galvanized single steel sheet. |
| 2.Thermal insulation panel: EPS/Rock wool/fiberglass/PU sandwich panel |
| Window | PVC or aluminum window |
| Door | Single/double steel door,insulated door,poultry door,roll-up
shutter door,glass door,etc |
| Optional extras | Gutter,downpipe,skylight sheet,turbine ventilator,monitor,crane,etc |
| Installation | Plan A: We have the detailed installation drawings and simple video that
can guide you to install the buildings. |
| Plan B: We can send one engineer to guide you to install the buildings. |
| Plan C: We also can send engineer & construction team to you project site
and install the buildings. . |
| Design software | Auto CAD,PKPM,MTS,3D3S, Tarch, Tekla.etc |
| Certificate | ISO, CE, SGS, BV |
| Origin | Qingdao,China |
FAQ:
Q:Are you manufacturer or trading company?
A:We are manufacture factory, located in Qingdao city, near to
Qingdao port. And we have total 3 workshops from steel structure to
wall and roof sheet.
Q: How about your quality control?
A: We have got certificate ISO & CE. Products processing through
cutting, bending, welding, shot blasting, ultrasonic testing,
packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client
requirement.
Q: How about your delivery time?
A: Generally within 30-45 days, it is according to order quantity,
partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors
guiding installation is available. We can do turnkey job for some
kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Sales and engineer team will provide you the suitable solution
according to your requirements before placing order. Proposal
drawing, Shop drawing, 3D drawing, Materials photos, Finished
projects photos are available, which will help you understand the
solution we provided deeply.
