SGS/CE/ISO Customized Color Steel Construction Buildings With Metal
Roof Sandwich Panel
Product Description:
Easy-to-Assemble Prefabricated Steel Structure House and Carport
Durable Metal Garage/Parking Lot
TERM | | Specification |
Base | | Steel foundation bolts |
Main Steel Frame | Column | Q235, Q355 Welded H beam |
| Beam | Q235, Q355 Welded H beam |
Secondary Frame | Purlin | Q235, Q355 C or z purlin:(with or without purlin) |
| Bracing | X-type or other type bracing made from angle, round pipe, etc |
Bolt | | Ordinary bolt and High-strength bolt |
Maintence System | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel /Rock Wool Sandwich
Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet |
Exterior wall fence panels | | Guardrails, handrails, fence panels |
Accessories | Window | Metal window/Aluminum Alloy Window / PVC Window / Sandwich Panel
Window |
| door | Sliding sandwich panel door/metal rolling shutter door/personalized
door/customized |
Paint Options | | two finish painting (Gray paint ,red paint,white pait ,epoxy zink
etc.) or Galvanized |
Sheet | | 0.35mm - 0.6mm color sheet |
Accessories | | Semi-transparent skylight belts, Ventilators, down pipe,
Galvanized gutter, etc according to the requirements of the
customers. |
When you choose our Steel Structure Building product, you can rest
assured that you are getting a high-quality building that is built
to last. Our expert team will work with you every step of the way
to ensure that your building meets your exact needs and
specifications.
Technical Parameters:
FREE drawings plans and quotations are available! Please feel free
to contact for further discussion. We look forward to working with
you with good quality materials and competitive price. In order to
give you an exact quotation and drawings, please let us know
length, width, eave height and local weather. We will quote for you
promptly.
| eel Structure Parts:(Q235 or Q355) Hot galvanized or painted | (1). Steel Column: H Section Steel |
| (2). Steel Beam: H Section Steel |
| (3). Withstand Wind Column: H Section Steel |
| (4). Connected beam: Circular Tube |
| (5). Roof Purline:cold formed galvanized C Section Steel or Z
Section Steel |
| (6). Wall purline: cold formed galvanized C Section Steel or Z
Section Steel |
| (7). End Wall purline: C Section Steel or Z Section Steel |
| Panel Material parts | (1). External Wall panel: (below is selectable) |
| 1) 50mm, 75mm or 100mm thickness EPS sandwich panel |
| 2) 50mm, 75mm or 100mm thickness Rockwool sandwich panel |
| 3) 50mm, 75mm or 100mm thickness PU OR FIBER GLASS wool sandwich
panel |
| 4)Corrugated Galvanized Steel sheet with different Color |
| (2). Internal Wall panel: (below is selectable) |
| 1)50mm, 75mm or 100mm thickness EPS sandwich panel |
| 2) 50mm, 75mm or 100mm thickness Rockwool sandwich panel, fiber
glass wool sandwich panel or PU sandwich panel |
| (3). Roofing panel: (below is selectable) |
| 1)50mm, 75mm or 100mm thickness EPS sandwich panel |
| 2)50mm, 75mm or 100mm thickness Rockwool sandwich panel |
| 3)Corrugated Steel Sheet, and insulating layer if need. |
| 4) 50mm, 75mm or 100mm thickness fiber glass wool or PU sandwich
panel |
| (4). Skylight: 820# Glass Fiber Reinforced Plastics (FRP) |
| Door and Window | (1). External Door ( Rolled up door or Sliding door ) |
| -1. Sandwich panel Sliding Door with double open |
| -2. Galvanized steel opening by power-operated Roller Door |
| (2). Internal Door: 50mm Thickness EPS sandwich panel with aluminum
alloy door frame |
| (3). Window: PVC Window or aluminum alloy window frame with glass. |
| Drainage parts | (1).Galvanized water channel: |
| 2mm thickness galvanized steel water channel 3000mm or 2440mm/pcs |
| (2). Down spout: ∅110 PVC Down spout with Accessorie |
| Connecting Piece | (1) Purline draw bar: ∅12 |
| (2) Horizontal Bracing: ∅24 Circular Tube |
| (3) Knee-Bracing: L Steel |
| (4) Purline Drive pipe: Φ32*2 |
| (5) Column Bracing: ∅24 Circular Tube |
Applications:
Support and Services:
FAQ:
Q:Are you manufacturer or trading company?
A:We are manufacture factory, located in Qingdao city, near to
Qingdao port. And we have total 3 workshops from steel structure to
wall and roof sheet.

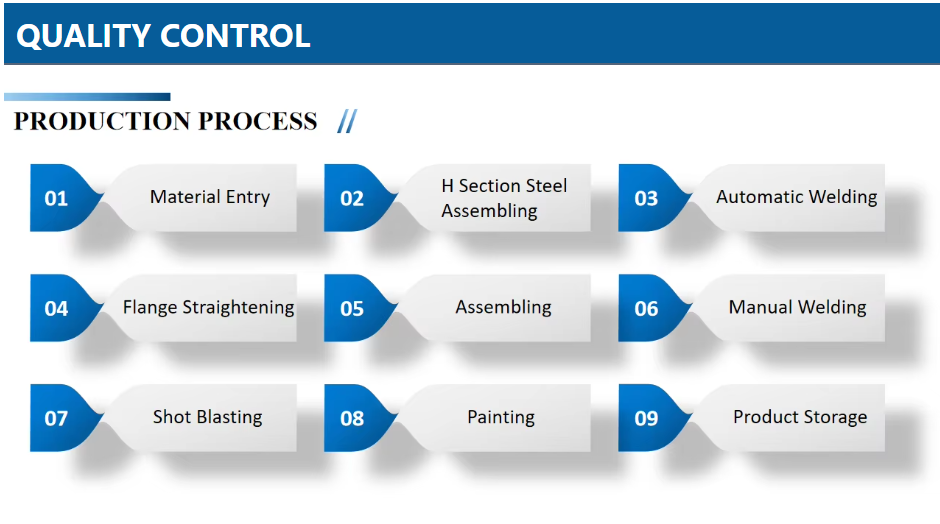

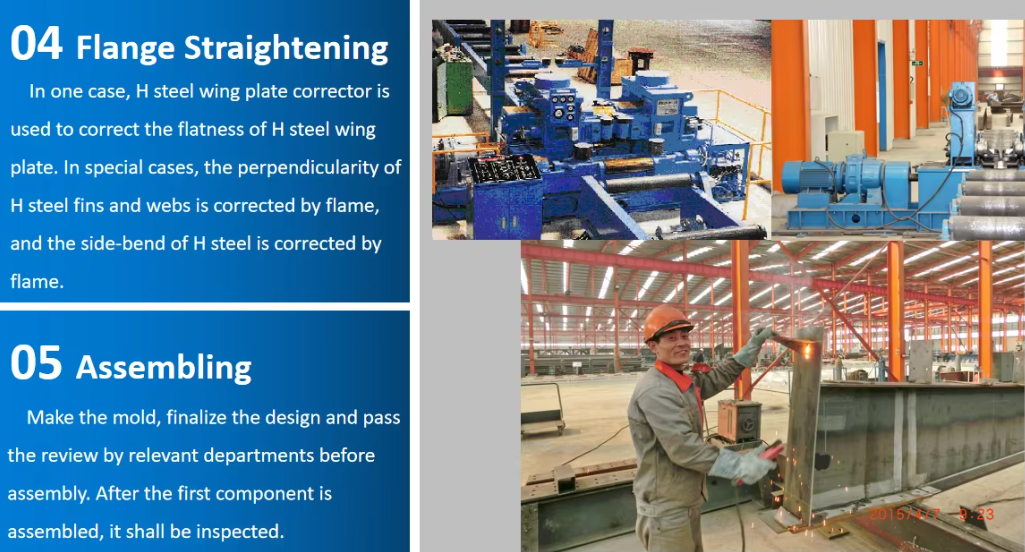

Q: How about your quality control?
A: We have got certificate ISO & CE. Products processing through
cutting, bending, welding, shot blasting, ultrasonic testing,
packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client
requirement.
Q: How about your delivery time?
A: Generally within 30-45 days, it is according to order quantity,
partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors
guiding installation is available. We can do turnkey job for some
kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Sales and engineer team will provide you the suitable solution
according to your requirements before placing order. Proposal
drawing, Shop drawing, 3D drawing, Materials photos, Finished
projects photos are available, which will help you understand the
solution we provided deeply.
