KXD Factory Prefabricated Multi-Story Large Span Steel Structure
Building Workshop/Warehouse
| Standard: | AISI, ASTM, BS, DIN, GB, JIS | Grade: | Q235B/Q355B Carbon Steel |
| Place of Origin: | Shandong, China | Brand Name: | KXD Steel Structure |
| Model Number: | Steel Structures | Type: | Portal Frame Steel System |
| Application: | Warehouse/Workshop/Sheds/Office Building/etc. | Price: | USD 30-80 Per Square Meter/Negotiable |
| Processing Service: | Bending, Welding, Decoiling, Cutting, Punching | Painting Color | As To Customer's Requirements |
| Main structure: | Section Column | Purlin: | C/Z Galvanized Steel(Q235) |
| Surface treatment: | Painting or Galvanizing | Wall&Roof panel: | Steel Sheet or Sandwich Panel |
| Design | 3D Model, PKPM, Tekla Model | Packaging Details | Steel Pallet Or In Bulk |
| Delivery Time | 30-55 Days | Certificate: | ISO9001:2008 |
| Payment Terms | T/T, L/C, Western Union, MoneyGram | Supply Ability | 15000 Tons Per Month |
High light | Affordable prefabricated steel structure building, Durable
prefabricated steel structure building, Industrial prefabricated
steel structure building |
Product Description
Multi-Storey Factory Supply Prefabricated Customized Engineered
Steel Structure Frame Building Construction
1. We purchase raw material directly from big mills in order to
reduce the cost.
2. All the material for steel structure workshop are H beam, C
purlin, Z purlin, corrugated color steel sheet and sandwich panels.
3. Wall panels and proof panels can be corrugated sandwich panels
or color corrugated steel sheet.
4. The steel structure has the advantages of quake-proof,
pollution-free, energy-saving and security in construction.
5. It's characterised by light weight, easy installation, short
construction period, quick investment return and eco-friendly.
6. We have our own Quality Control Department to guarantee the
quality for projects.
Specifications For Multi-Storey Steel Building
| The main options of the componets are as the following: |
| Main Structure | Column | Q355B Welded H column |
| Rafter, Beam | Q355B Welded H column |
| Surface processing options | 1. Epoxy zinc-rich primer + epoxy mica termediate paint |
| 2. Hot dip galvanization |
| Sub Structure | Purlin | Q235B, C section steel, galvanization 80-275g/m2 |
| Angle brace | Q235B, L- steel |
| Cross bracing | Q235B round bar, L-steel |
| Tie bar | Q235B, round pipe |
| Batter brace | Q235B, round bar |
| Roof System | Roof panel options | 1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Both
sides are steel sheet. Thickness of roof panel 50mm/75mm/100mm,
thickness of steel sheet 0.4mm/0.5mm/0.6mm |
| 2. Steel plate, thickness 0.4mm-0.6mm |
| Gutter options | 1. Galvanized steel gutter, thickness 2.0mm/2.5mm, 3.0mm |
| 2. Painted, Pre-finished steel gutter, thickness 0.4mm/0.5mm/0.6mm |
| Down spout | PVC pipe |
| Steel flashing and cover | Steel sheet for roof ridge cap, gable wall end cover and corner
cover |
| Options | Roof skylight 1.5mm PVC sheet and stainless steel ventilator |
| Wall System | Wall panel options | 1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two
sides is steel sheet. Thickness of wall panel 50mm/75mm/100mm,
thickness of steel sheet 0.4mm/0.5mm/0.6mm |
| 2. Steel plate, thickness 0.4mm/0.5mm/0.6mm |
| 3. Brick wall (provided by client) |
| Door | 1. Roller door for truck, size customized |
| 2. Sliding door for truck, size customized |
| 3. Access door, steel door, glass door etc. |
| Window | PVC or Aluminum frame, Fixed, swing, sliding, louver etc, size
customized |
| Steel flashing and cover | Steel sheet end cover and corner cover |
| Accessories and fasteners | | Anchor bolts, chemical bolts, high strength bolts, ordinary bolts,
self-tapping screws, rivet etc. |

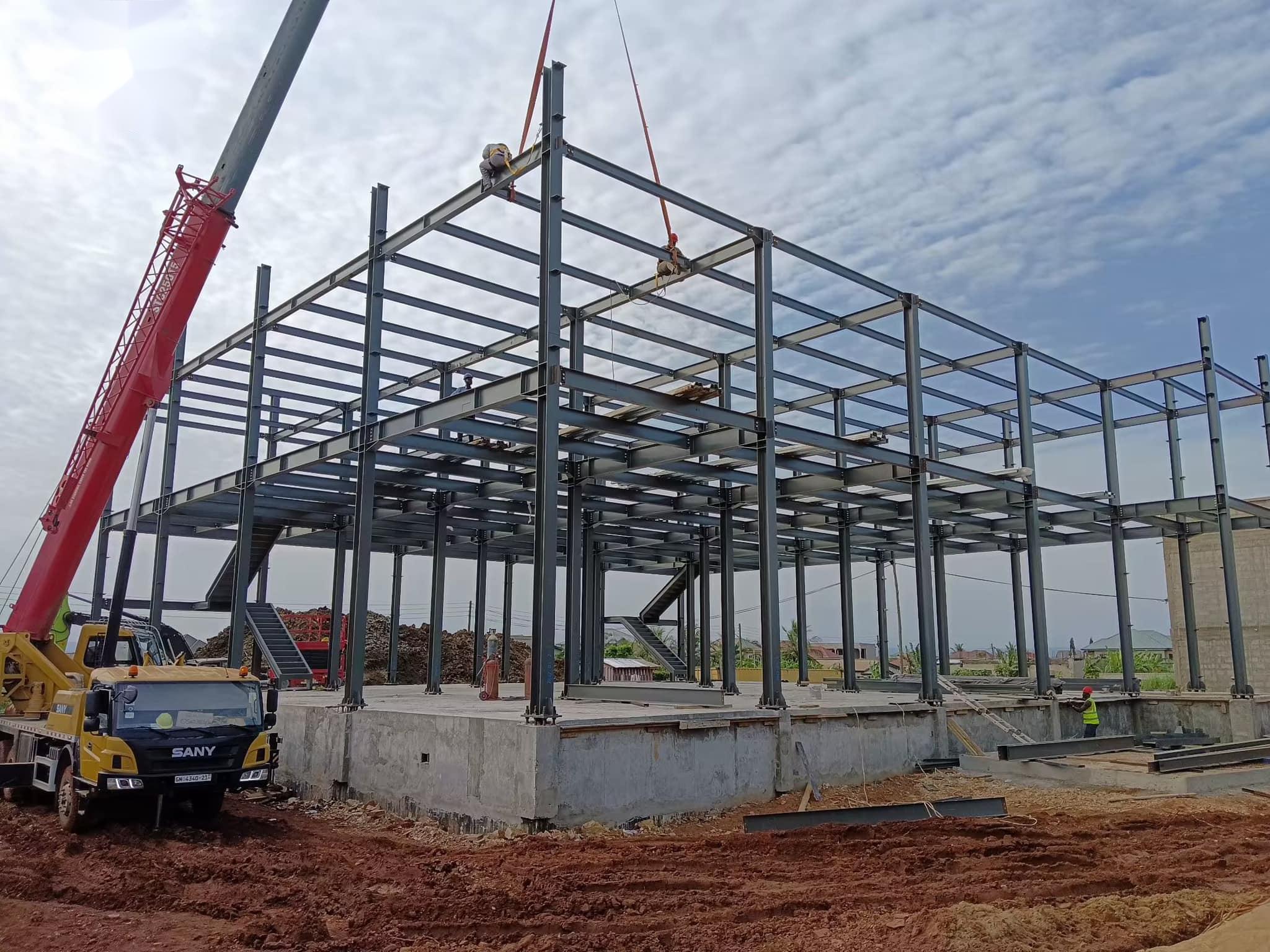

Model of Multi-Storey Steel Building
Our Services
Design
Our team of steel structure design experts work with you to
determine the balance scope and budget of your project. During the
process, we will provide scope maps, budget confirmations and
timetables. Each building is customized to provide long-lasting,
maintenance-free value.
Engineer
After the design is completed, it will be submitted to the
engineering department. The engineering team will evaluate the
structure to ensure that it meets design standards and local code
requirements. After completion, they will prepare the final
drawings and prepare the manufacturing plan.
Manufacture
The steel structure is pre-cut, pre-drilled and ready for on-site
assembly. Our manufacturing process ensures that the manufactured
materials are cut to specifications, packaged and ready to be
shipped by ship.
Deliver
Before delivering the building, our logistics professionals will
verify the BOM quantity at the factory.
Support
We manufacture all structures and erect them on site by yourself or
professionals. In any case, our project management team will
provide you with support at any time until the last decorative
piece is installed.
Design Support
We offer comprehensive design and detailing services using modern
design software such as AUTOCAD, PKPM, 3D3S, SAP2000, TSSD, Tekla
Structures (Steel), and 3DS MAX.
Our team provides professional, quick responses, ensuring all
sketch designs and plans are free of charge and executed to the highest standards.
Manufacturing Support
Drawings & Quotation Support
If you have drawings , we can provide a quote accordingly .
If you don't have a drawing but are interested in our steel
structure products, please provide the below info.
we can design a solution for you.
| Basic Design Requirements |
| 1.Project location | 5.Length (sidewall,m) | 9.Window quantity, size |
| 2.Snow load | 6.Width (end wall, m) | 10.Door quantity, size |
| 3.Wind load | 7.Wall Height (eave, m) | 11.Brickwall needed or not. If yes, 1.2m high or 1.5m high |
| 4.Seismic magnitude | 8.Middle column allowed or not | 12.Crane needed or not |
| 13.Thermal insulation. If yes, EPS, fiberglass wool, rock wool, PU
sandwich panels will be suggested; If not, the metal steel sheets
will be ok. The cost of the latter will be much lower than that of
the former. |
FAQ
Q:Are you manufacturer or trading company?
A:We are manufacture factory, located in Qingdao city, near to
Qingdao port. And we have total 3 workshops from steel structure to
wall and roof sheet.
Q: How about your quality control?
A: We have got certificate ISO & CE. Products processing through
cutting, bending, welding, shot blasting, ultrasonic testing,
packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client
requirement.
Q: How about your delivery time?
A: Generally within 30-45 days, it is according to order quantity,
partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors
guiding installation is available. We can do turnkey job for some
kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Sales and engineer team will provide you the suitable solution
according to your requirements before placing order. Proposal
drawing, Shop drawing, 3D drawing, Materials photos, Finished
projects photos are available, which will help you understand the
solution we provided deeply.
