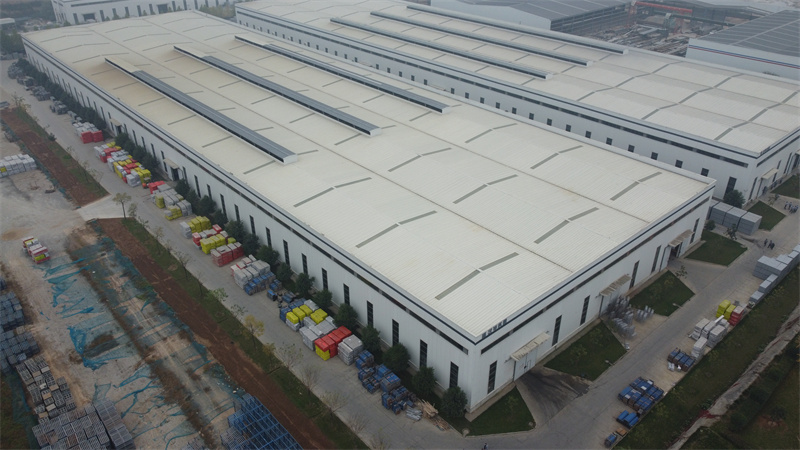

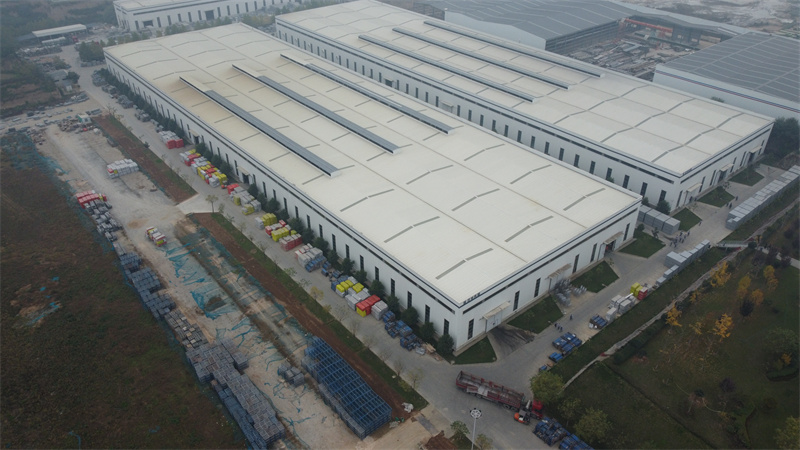

Twin Looking Industry Factory Steel Workshop
Short Description:
Length*Width*Height: 2 Units 120m*60m*8m
Usage: building materials manufacturing workshop.
Property: 2 same building with same size, developed by phase 1 and
phase 2 by different date.
Main Steel Structure Frame
Main structure is made by steel pipe, we called it space frame
structure, this type structure got light self weight, so that the
column and concrete foundation no need very heavy, saved
construction cost. Also the distance between support column can be
very big, which is easy for the car under it to pass.
Steel Support System
The space frame support is made by round pipe, and the support full
of the structure, which is a very stable and strong structure.
Wall & Roof Covering System
Roof purlin: galvanized C steel, common choice for standard steel
structure workshop building.
Side purlin: galvanized C steel, the steel get galvanized
manufacture treatment will get a longer life time.
Roof sheet: use V840 steel sheet panel as standard roof cover,
which is a popular choice for most of the workshop roof cover.
Wall sheet: use aluminum plastic panel las wall panel, which is
easy maintenance for after installation.
Additional System
Rain gutter: Inner gutter use galvanized steel gutter, so that the
gutter life time is long and no need maintenance in future.
Out gutter used steel sheet gutter to get a easy installation
process.
Downpipe: Plastic pipe with life time 60 years guarantee, no need
maintenance in workshop life time.
