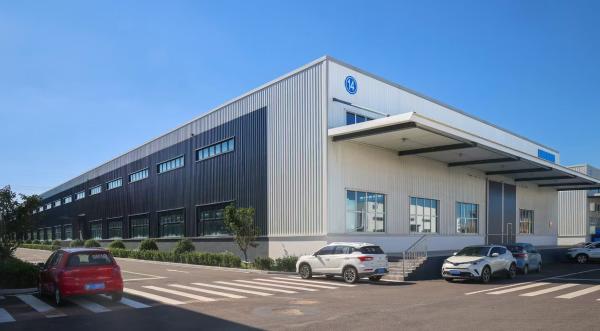

Industrial Large Metal Prefab Customized Steel Structure Workshop
tems | Specification |
Main steel frame | Column | Q355 Welded H Section Steel (equivalent to S355JR, ASTM A572 Gr.
50) |
Beam | Q355 Welded H Section Steel (equivalent to S355JR, ASTM A572 Gr.
50) |
Secondary Frame | Purlin | Q235 C and Z purlin (equivalent to S235JR, ASTM A36) |
Knee brace | Q235 Angle Steel (equivalent to S235JR, ASTM A36) |
Tie Rod | Q235 Circular Steel Pipe (equivalent to S235JR, ASTM A36) |
Brace | Q235 Round Bar (equivalent to S235JR, ASTM A36) |
Maintenance system | Roof Panel | EPS Sandwich Panel/Glass Fiber Sandwich Panel/ Rock Wool Sandwich
Panel |
|
|
Wall Panel | Sandwich Panel/ Corrugated Steel Sheet |
|
|
Accessories | Window | Aluminum Alloy Window/ PVC Window/ Sandwich Panel Window |
Door | Sliding Sandwich Panel Door/ Rolling Metal Door/ Personal Door |
Structure Usage | Up to 50 years |
Finishing Options | Vast array of colors and textures available |
| All the solutions for your: Qingdao KXD STEEL STRUCTURE CO., LTD |
| Column and rafter | Tie beam (eave strut) | X Brace |
Main steel structure frame :
Material: Weld H beam or hot rolled H beam, etc
Grade:Q355 (S355JR)
Surface: Hot dip Galvanized zinc coating or Anti-rust paint
rich-zinc epoxy paint, etc
Usage: Make up the main steel structure frame | Strut (Tie beam) on eave and ridge:
Material: Round pipe or square tube, etc
Grade:Q235 (S235JR)
Surface: Hot dip Galvanized zinc coat or Anti-rust paint, rich-zinc
epoxy paint,t etc
Usage: Avoid the main steel structure frame shake in the length
direction | X brace for roof and wall:
Material: Steel Round bar or angle steel, etc
Grade:Q235 (S235JR)
Surface: Hot dip Galvanized zinc coat or Anti-rust paint, rich-zinc
epoxy paint, etc
Usage: Make the whole structure stable, tie the whole building into
one |
| Purlin & Wall girt | Corrugated steel sheet and flashing trimming | Sandwich panel |
Purlin:
Material: C/Z purlin etc
Size:80~300mm,thickness1.8~3.0mm
Grade:Q235 (S235JR)
Surface: Galvanized zinc coating
Applications: For supporting the protection structure and
installing cladding panels | Single sheet:
Color: Ral. colors, optional
Thickness:0.13-0.8mm
Type:V840,V900,etc mutiple wave type
Usage: Prefabricated Building Roof or wall coverage or cladding
flashing trimming cover: To cover the ridge, wall out corner, etc
to avoid leaking air or water | Sandwich panel or insulation:
Structure two-layer PPGI surface sheets and insulation core
Type: EPS sandwich panel, Rock wool sandwich panel, Glass wool
sandwich panel, PU/PIR sandwich panel, etc
Other insulation: glass wool blanket or PE foam
Applications: Fireproofing and warm insulation
Advantage: Removable, lightweight weight and easy to install |
| Advantages Qingdao KXD STEEL STRUCTURE CO., LTD |
OUR TEAM OF EXPERTS
The team of experts is very skilled, with many years of experience.
Most of them have in-depth training in the field of construction,
construction methods, and construction of pre-engineered steel
overseas, and have more experience in the construction of large
steel works.
ENSURE APPROPRIATE OPTION
We build professional constructions, on time within the set time
frame; To achieve this, before deploying everything, the company's
engineers will prepare and plan to avoid the slightest errors.
SAFETY FIRST
With the motto of managing ``Labor Safety first``, the quality of
the project must always ensure the original commitment. All
technical standards for safety and quality are supervised by
supervisors at the highest level.
INTERNATIONAL STANDARD
Using the management system based on ISO 9001: 2015 standard, we
have produced a lot of high-quality steel structure products used
for many domestic and foreign large-scale projects.
FACTORY CAPACITY
Modern technology and machinery, using the latest design and
manufacturing technologies. We are constantly researching new
optimal solutions to perfect the product.
ENSURE THE BEST PRICE
We provide a comprehensive solution, we are proactive in all, from
consultancy, design, production, construction, and erection to
completion of the project. In addition, we will offer prices to
clients based on actual needs and situations.
EXPORT STEEL STRUCTURE
So far, we have successfully exported steel structures to 80
countries in Southeast Asia, USA, Australia, Europe, Africa, etc.
Support and Services:
1. We supply one-stop service from the 3D model, design drawing and construction drawing, and
online technical support, to return and replacement.
2. With a patented pallet, it is easy to load and unload.
3. Nice appearance, smooth surface, and different painting color
options for customized.
4. Stable and durable, could assist strong wind and heavy snow.
5. Cost-effective, low-cost, and fast construction, the materials
can be recycled.
Packing and Shipping:
FAQ:
Q:Are you manufacturer or trading company?
A:We are manufacture factory, located in Qingdao city, near to
Qingdao port. And we have total 3 workshops from steel structure to
wall and roof sheet.
Q: How about your quality control?
A: We have got certificate ISO & CE. Products processing through
cutting, bending, welding, shot blasting, ultrasonic testing,
packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client
requirement.
Q: How about your delivery time?
A: Generally within 30-45 days, it is according to order quantity,
partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors
guiding installation is available. We can do turnkey job for some
kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Sales and engineer team will provide you the suitable solution
according to your requirements before placing order. Proposal
drawing, Shop drawing, 3D drawing, Materials photos, Finished
projects photos are available, which will help you understand the
solution we provided deeply.
