    Widely applicated prefabricated light weight steel structure buildings manufacture

    Ask Lasest Price
    Brand Name : KXD
    Model Number : S0011
    Certification : SGS, ISO, CE
    Price : $50-80 per square meter
    Payment Terms : L/C,T/T
    Supply Ability : 3000 tons per month
    Delivery Time : 30-40 working days
    • Product Details
    • Company Profile

    Widely applicated prefabricated light weight steel structure buildings manufacture

    Prefab steel structure building Description:

    Application

    residential steel home/house

    steel farm building, poultry, cow shed etc.

    Logistics warehouse, industrial workshop

    commercial building

    storage shed, Hangar

    sport hall, steel hall,shopping mall, office

    Specification

    Clear span:

    (width)

    6~50m without middle column

    Height

    2~20m

    Length

    as requirements

    Material Grade

    Q355b, Q235b, S355JR, S235JR or as request

    Column/beam

    Welded or Hot rolled H , I , box steel

    Tie beam

    round pipe or square tube or as request

    X brace

    round steel bar, angle steel or as request

    Purlin

    C /Z section steel, thickness 2.0mm,2.2mm,2.5mm,3.0mm

    sag rod

    steel round bar, angle, C purlin etc

    Wall & Roof

    steel sheet (0.4~0.75mm)
    EPS, Rock wool, glass fiber ,PU insulated sandwich Panel
    (Thickness:50mm,75mm,100mm,150mm,200mm)

    Gate

    Electric rolling shutter /Sliding door

    Exit Door

    Aluminum alloy door/ Glass door/ steel security door/stainless steel security door

    Window

    Plastic steel or Aluminum alloy frame sliding window/ swing window

    Surface

    Alkyd painting

    rich-zinc epoxy painting
    hot dipped galvanize

    Certificate

    ISO90001,CE EN1090 EXC2 ,IWE etc

    Quality Control

    The third party ,SGS, QIMA, BV all accept

    Crane

    5MT, 10MT, 15MT, 20MT, 30MT etc.

    Other accessories

    gutter, flashing trimming cover, down spout, ventilation, skylight, bolts, rivets, anchor bolt, self tapping screw, sealant etc

    Package

    main steel frame loads in 40'OT / packed steel pallet

    roof &wall panel load in 40'HQ!

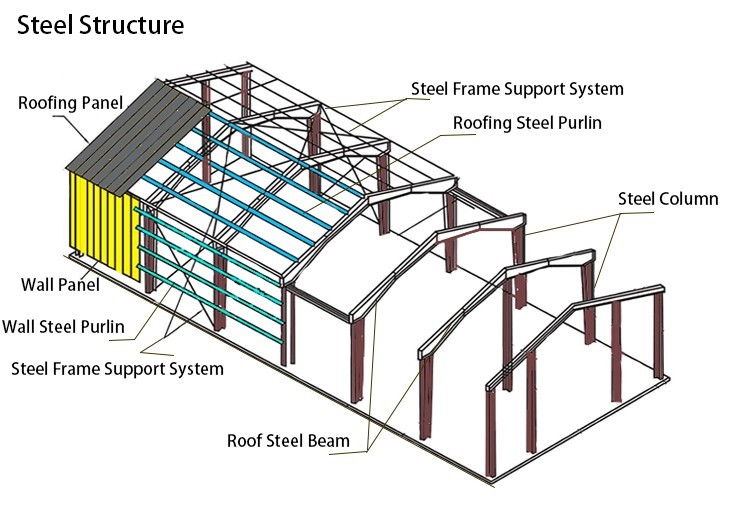

    3D models of Our executed projects:

    Quick installing single layer steel structure frame prefabricated storage hangar 2
